Main panel

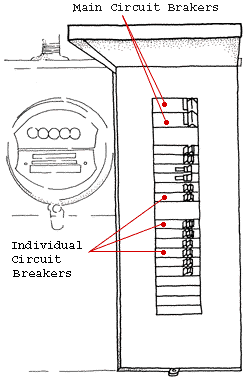

The Main panel, also known as the electrical panel or circuit breaker panel, is a crucial component of a house's electrical system. It is the central hub where electricity from the utility company enters the house and is distributed to various circuits throughout the building. The main panel contains circuit breakers or fuses that protect the electrical circuits from overloading and provide a means to control and shut off power to individual circuits if needed.

Key features and functions of the main panel in houses include:

I. Power Distribution: The main panel receives the incoming electrical supply from the utility meter and distributes it to different circuits within the house. Each circuit is dedicated to specific areas or appliances, such as lighting, outlets, kitchen, bathroom, HVAC system, and more.
II. Circuit Breakers or Fuses: The main panel houses circuit breakers or fuses that act as safety devices. They monitor the electrical current flowing through the circuits and trip or blow if the current exceeds a safe limit. This protects the wiring and appliances from damage due to overload or short circuits.
III. Electrical Load Management: The main panel allows homeowners to manage the electrical load in their house. By monitoring the total power consumption and the capacity of the electrical service, they can avoid overloading the system and prevent potential hazards.
IV. Wiring Connections: The main panel serves as a central junction point for the electrical wiring in the house. It connects the incoming service wires from the utility company to the individual circuit wires, ensuring proper distribution of electricity throughout the building.
V. Grounding and Bonding: The main panel includes grounding and bonding components to ensure electrical safety. Grounding provides a direct path for electrical faults to safely discharge into the ground, while bonding ensures all metal components within the electrical system are connected and have the same electrical potential.
VI. Accessibility and Safety: The main panel is typically installed in a readily accessible location, such as a utility room, basement, or garage. It should be easily accessible for maintenance, inspection, and in case of emergencies. Adequate clearances and safety measures, such as proper labeling and covers, are essential for safe operation.

Proper installation, maintenance, and regular inspections of the main panel are crucial for electrical safety in a house. It is recommended to consult a licensed electrician or electrical contractor for any modifications or upgrades to the main panel to ensure compliance with electrical codes and regulations. It's important to note that electrical work can be dangerous and should only be carried out by qualified professionals.
